LOW TEMPERATURE BATH CIRCULATOR

LOW TEMPERATURE BATH CIRCULATOR

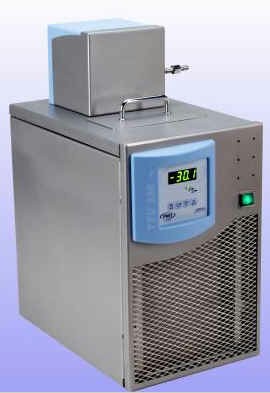

Model TLC30

  This type of cooling circulator can be used for multiple heat removal purposes like replacement of tapwater, general cooling or in combination with ASTM flashpoint testing instruments. is detected electronically.

Control mechanism
The used cooling system is ozone friendly, so it doesn't contain any CFK/HCFK gas With the compressor running continuously, the fluid temperature is regulated through an electronic controlled heater

Span
The TLC30 offers following working range:
-30 to +60�C / -42 .. 140�F

The setpoint can be set in steps of 0,1�. The overall system accuracy is better than �0,1�K. Standard available in �C, on request in �F.

Pump
A pressure pump provides circulation in the bath or via an external circuit. The pump pressure is 300 mBar and 7 ltrs per minute(no counterpressure).

Safety
The bath conforms CE regulation. It is further equiped with a mechanical adjustable and resettable safety thermostat.

Technical specifications:
Range -30..60�C (-22..140�F)
Reading Standard �C, �F on request
Used materials inside bath Stainless Steel 304, PTFE,chrome plated coil
Setting � [�K] 0,1
Stability* � [�K] Better than 0,1
Heating [W] 1100
Heaters 1
Bath volume [L] 5
Pump pressure [mm H2O] 300
Pump cap. L/min 7
Compressor Hp 220
Heat removal
[W] @15�C : 200
[W] @-3�C : 150
[W] @-25�C : 100
[W] @-30�C : 50
Opening [mm] 85x140
Depht [mm] 150 x Length [mm] 420 x Width [mm] 265 xHight [mm] 565 , Weight [Kg] 30
Power [W] 1400

All models conform CE regulation
