DEFINITION:
ASTM D 129 - ASTM D1662 - IP 61 - NFT 60109 - obs.DIN 51577
This test method covers the determination of the %mass content of sulfur in petroleum products which contain at least 0,1% and at most 99% S (lubricating oils containing additives, additive concentrates, and lubricating greases that cannot be burned completely in a wick lamp), after burning a sample in O2 atmosphere.
ASTM D 808 - obs.DIN 51577
This test method covers the determination of chlorine in new and used lubricating oils and greases additives, and in additive concentrates. Its range of applicability is 0,1 to 99% Cl, Fl, Br and 0,1 to 97% I.
This instrument is as well suitable to be used for oils and waxes of synthetic, phytogenic or animal origin, phosphor or metals.
SPECIFICATIONS

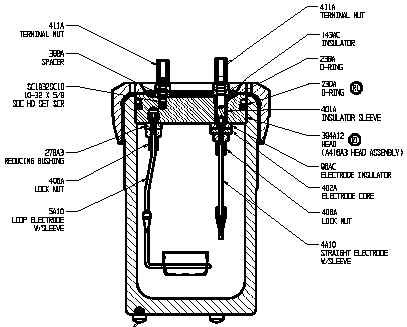

Our Sulphur and Chlorine Pressure Vessel Test Equipment model SCL0 is an accurate, repeatable and safe instrument including a 300 ml combustion pressure cylinder, charges 0,05 to 1,5 g depending on the sample type, double walled, FULLY MADE OF STAINLESS STEEL, two electrodes, a cover with threaded sliding ring, a gasket around the cover edge, an automatic inlet valve, an exhaust needle valve tested to 300 Bar, and a start switchboard.
Our Ignition Assembly model SCL2 is housed in a plate box coated with anti-acid epoxyd, a low voltage outlet for connection with the electrodes of the cylinder, a start button, an Ammeter, and an O2 pouring regulator.
Our Reduced Gear model SCL3 is fitted with two manometers, a safety valve, a calibration wheel up to 50 Atm., a pin valve, a capillary copper junction with connection for cylinder charge, and a cover support
Model SCL4 is an opaque quartz capsule boat with support edge
Model SCL1 is a 3 ml cap
Model SCL7 is a a 0.01 mm diameter iron ignition wire
ACCESSORIES:
Platinum ignition wire 0.4mm diameter
Platinum capsule
Cloth wire
Water bath for cooling
SPARES:
Iron ignition wire
Platinum ignition wire
Platinum capsule
Cloth wire
Cylinder
Ignition assembly
Reducer gear
Ammeter
Bipolar green switch
Pushbutton
Transformer 220/12V
Socket block
Gasket
Automatic valve
Internal support for valve
Internal tube for O2 inlet
