TECHNICAL SPECIFICATION

Display on 128 x 128 graphic LCD shows you many interesting information as:

Last measured value

Minimum and maximum value

Standard deviation

Mean value

Concrete strength selected : N/mm2, kg/cm2,psi and Mpa

Number of carried out test impacts

Display area and limits

Impact direction

Mean value after preselected number of impacts

Selected conversion curve

Elimination of outliers Form factor

Measurement series number

Nonvolatile memory for 5000 measured values

Battery operation for 60h

Interface RS 232 C

Transfer cable to PC

2 stand conversion curves ( 7 and 28 days)

5 further curves can be programmed

According to norms:

EN 12398 / ASTM C 805 / BS 1881 Part 202 /DIN 1048, Part 202/ UNE 83:307

Guaranteed first class service worldwide

Self-calibration with testing anvil (not included, available as accessory)

Form supplied:

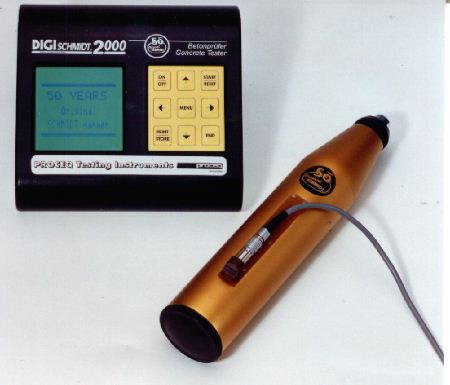

Test hammer with display unit

Carrying strap

Grinding strap

Grinding stone

Transfer cable for PC

Operating instructions

Calibration certificate

Carrying case
