This test method is for determining hydrocarbon types over the concentration ranges from 5 to 99 volume % aromatics, 0.3 to 55 volume % olefins, and 1 to 95 volume % saturates in petroleum fractions that distill below 315°C.

REF. 941505

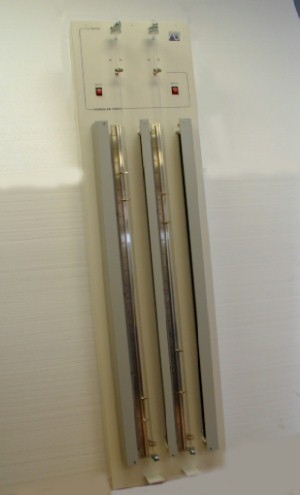

New designed Adsorption apparatus assembly, twin test, with standard column.

REF. 9415050
New designed Adsorption apparatus assembly, twin test, with true bore column.

NECESSARY ACCESSORIES
995065 Silica gel 100 to 200 mesh (per 500 g)
995067 Certif ied silica gel w ith colored indicator (40 gr)
995069 Hypodermic syringe 1ml + Needle (10 cm)
9415068 Hypodermic cleaning tube (2 m)

SPARE PARTS (2 years basis)
995057 Tube UV (40 W)
9415052 Standard adsorption column (upper part)
9415053 True Bore adsorption column
9415054 Spherical connector for air input (S28/12)
9415056 Standard w all tubing (low er part)
9415057 Outlet for true bore column (S12/2)
11089 Clamp for low er joint
11091 Clamp for upper joint
9415058 Electrical vibrator
