FREEZING POINT OF AVIATION FUELS ASTM D2386 - NIP 16 - NFM 07048 - ISO 3013 - DIN 51421

FREEZING POINT OF AVIATION FUELS

ASTM D2386 - IP 16 - NFM 07048 - ISO 3013 - DIN 51421

This standard describes a method of determination of the temperature below which solid hydrocarbon crystals may form in turbine and reciprocating engine fuels under cooling conditions which may occur during flight or on airfield.

CHARACTERISTICS
  • Dewar flask
  • Sample tube
  • Manual stirrer
  • ASTM 114C thermometer

    • SPECIFICATION

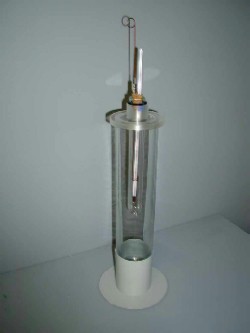

    Complete Tester including Dewar flask, sample tube, holed cork, manual stirrer, tight joint, ASTM 114C thermometer, holder with upright, boss and clamp,

    REF.941556
    Complete freezing point apparatus, comprising : jacketed sample tube, brass packing gland for stirrer, brass wire stirrer, vacuum flask unsilvered with support and thermometer

    REFERENCE FLUID (on request)

    SPARE PARTS (2 years basis)
    9415561 Jacketed sample tube (double w alls)
    9415562 Gland, brass packing for stirrer
    9415563 Stirrer
    9415564 Vacuum f lask unsilvered
    9911566 ASTM thermometer 114C
    9913463 Cork for sample tube

    see also:
    Automatic determination of the freezing point Model NPC 452
    Automatic determination of the freezing point
