DEFINITION
The PUNDIT family of test instruments, specially designed for non-destructive assessment of concrete structures has always been one of the biggest sellers in our range. Now. with the launch of PUNDIT Plus we have taken a leap forward, using the latest technology to meet the increasing demands for accuracy, reliability and ease of use.
In a smart, newly designed, functional housing and with new internal electronics and battery power, the PUNDIT Plus is ready to go anywhere it is needed.
In its optional rugged metal carrying case, the unit can be used in even the most hostile environment, detecting cavities and cracks, in important concrete structures such as bridges and dams. To make recording of readings even simpler, we have also included a special switch on the unit's transducers which when pressed, records the reading.
CHARACTERISTICS
Ruggedly built for on-site reliability
Simple, speedy operation
Integral RS 232 interface
Auto memory store for readings
Large LCD display
CE marked

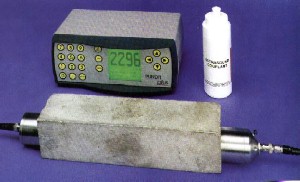

PUNDIT KIT
Pundit Plus supplied in nylon holder
Mains lead and power supply
Two 54kHz transducers
Two 12ft (3.7 metre) cables
Ultrasound couplant
Operating manual
Optional - Rigid aluminium carrying case
SPECIFICATION
|
Mode |
Velocity |
Transit time |
Elastic Modulus |
| |
|
|
|
|
Range |
1 to 9999 |
0.1 to 9999us |
Up to 999.9 |
|
Units |
M/s or ft/s |
2 ranges 0.1 or 1us |
GN/m 2 |
|
accuracy |
±1 m/s or ft/s |
±0.1us |
±0.1 GN/m 2 |
|
Over range |
Indicated by over range message |
|
|
|
Lost signal |
Indicated by lost signal message |
|
|
|
DISPLAY |
128 x 128 dot LCD with back lighting |
|
|
|
RS232C OUTPUT |
|
|
|
|
Baud rate |
Fixed at 9600 baud |
|
|
|
Paridity |
none |
|
|
|
Data bits |
8 |
|
|
|
Stop bits |
1 |
|
|
|
SCOPE OUTPUT |
|
|
|
|
Synchronisation |
3.5V positive, rise time 2us |
|
|
|
Pulse |
|
|
|
| |
|
|
|
|
Signal
Transmitter |
True facsimile of receiving transducer output for outputs up to 0.4V. For outputs in excess of this value the receiving transducer may be plugged directly into the CRO add-on unit with the time base synchronised from the instrument
|
|
|
|
Energising pulse |
Nominal 1.2kV, 500V or 250V, 1.5ps duration |
|
|
|
Power supply
Battery |
Internal rechargeable NiMH batteries 8 x 1.2V/1.2 Ah |
|
|
|
Power supply |
100/240V AC input 50.60Hz. 20V DC output |
|
|
|
Environmental |
|
|
|
|
Operating temperature |
|
|
|
|
Range
Dimensions
Weight
Complete kit
OPTIONAL EXTRAS
A range of transducers and amplifiers are acailable |
0°C to 40°C
250 x 160 x 100mm
2.3kg electronics unit only
8.2kg
|
|
|
| |
|
|
|
