RetroSign Retroreflectometer on site quality control of road signs and all reflective material

"RetroSign Retroreflectometer "
Vertical Retroreflectometer
RetroSign® RETROREFLECTOMETER
On site quality control of road signs and retroreflective materials
- Measures correctly all types and colours of retroreflective materials
- Accuracy comparable to laboratory measurements
- Geometry meets DIN, ASTM and CIE specifications
- Stray light compensated
- Large dynamic range (0-2000 cd/lx�m²)
- Portable selfcontained construction (no separate battery pack)
- Low weight and ergonomic design
- Direct digital read out of the coefficient of retroreflection R'
- Data storage in internal memory
- RS 232 serial interface for data output, extended control, calibration and diagnostics
- Long battery life. More than 1000 measurements typical
- Carrying case, including calibration standard

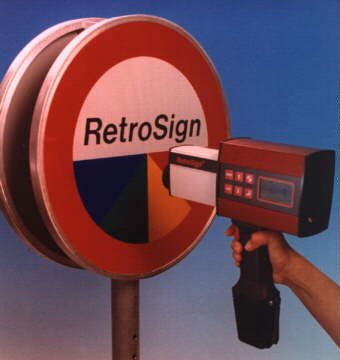

The RetroSign retroreflectometer is a hand held instrument capable to measure accurately and
reliably the retroreflection properties of road signs and retroreflective materials.
The RetroSign measures the retroreflection (with direct read out of the coefficient of
retroreflected luminance in cd/lx�m²) according to international standards.
The use of a proprietary gradient index filter technology and the patent
pending optical system design ensures accuracy comparable to laboratory measurements for all types
and colours of retroreflective materials. Only one white calibration standard is needed.
Data storage in internal memory provides for registration of measurement results and
corresponding supplementary data. Serial interface RS232 is included for extended control, calibration and data
output.
The RetroSign is powered by a rechargeable battery pack with a capacity corresponding to typical
more than 1000 measurements. A mains powered battery charger is supplied as standard accessory.
RETROSIGN® TYPE 4000 AND 4500 SPECIFICATIONS
| RetroSign Type 4000: | |
| |
Geometry | DIN 67520 |
| Illumination angle | +5� |
| Observation angle | 0.33� |
| Light source- and receptor angular aperture | 0.16� |
| |
| |
| RetroSign Type 4500: | |
Geometry | ASTM-E-810 |
| Illumination angle | -4� |
| Observation angle | 0.2� |
| Light source- and receptor angular aperture | 0.1� |
| |
| Field of measurement | ø 30mm |
| Light source | CIE illuminant type A |
| Receptor sensitivity | CIE S002 |
| Receptor accuracy | (CIE publication no. 69)f1 ' < 5% |
| Min./max. reading | 0 / typ.2000 cd/lx�m� |
| |
| |
| Electrical characteristics: | |
| EMC | EN 50081-1 and EN 50082-1 |
| Power supply: | Battery-replaceable NiCd 9.6V/1.2 Ah |
| Approx. 1000 measurements |
| External charger | Mains voltage 230 VAC |
| (Optional: 110V/60Hz) |
| Charge time | Approx. 15 minutes |
| Data memory | Min. 1000 measurements |
| Data retention | Typ. 5 years |
| Interface | RS 232 (9600,N,8,1) |
| |
| |
| Environmental Specifications: | |
| Temperature: | 0�C to + 45�C /32�F to 113�F |
| Humidity | Non - condensing |
| |
| |
| Mechanical characteristics: | |
| Length | 295 mm / 11.6" |
| Width | 83 mm / 3.3" |
| Height | 324 mm / 12.8" |
| Weight | 2.1 kg / 4.6 lbs |
| Gross weight | Approx. 6 kg / 13.2 lbs |
|
