RING AND BALL AUTOMATIC SOFTENING POINT TESTER ASTM D36, EN 1427, NFT 66008, ISO 4625, DIN 52011, NFT 66147, IP 58

RING AND BALL AUTOMATIC SOFTENING POINT TESTER

NF EN 1427, ASTM D36, IP 58,
DIN 5201, ISO 5940 and NFT 66008

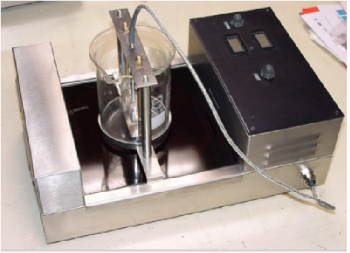

1. Cat/no 10036000 Automatic Ring & Ball Tester Model D36-EN1427

Fully according (especially heating and stirring) to NF EN 1427, ASTM D36, IP 58, DIN 5201, ISO 5940 and NFT 66008 for 2 simultaneous determination of Softening Point of Bitumen and similar products, automatic supervision of heating rate to 5 +/- 0,5 °C/min by means of micro-processor, PID regulation of Infra-Red Quartz Emitter and Pt 100 probe, exclusive reflexion parabol of thermal waves to provide a very good homogeneity of the bath, controlled stirring speed, optical detection of ball falls with digital display of both temperatures, automatic power shutt-off at end of test and safety cut-off.

Standard model delivered complete with necessary accessories (calibrated beaker, 2 shouldered rings, 10 balls, cradle, Pt 100, magnetic propeller stirrer and power supply lead. Voltage : 230 V ± 10% - 50/60 Hz. External dimensions: 210 x 297 x 110 mm. Weight: 5 kg.

RING AND BALL AUTOMATIC SOFTENING POINT TESTER ASTM D36, EN 1427, NFT 66008, ISO 4625, DIN 52011, NFT 66147, IP 58

Our unit may be supplied without (metallic frame with anti-corrosion treatment) or with our painting.

Recommended supplies for 2 years

2. Cat/no 10036001 Glass beaker, 600 ml, gauged ( 1 for conditionning, 1 for testing and 1 for cleaning )
3. Cat/no 10036002 Shouldered rings (pack of 10)
4. Cat/no 10036003 Conical rings (pack of 10)
5. Cat/no 10036004 Straight rings (pack of 10)
6. Cat/no 10036005 Balls made of 100C6 quality steel (pack of 10)
7. Cat/no 10036006 Craddle (for pre-conditioning the samples).

Recommended spares for 3 years

8. Cat/no 10036007 Detection lamp
9. Cat/no 10036008 Pt 100 probe with calibration certificate
10. Cat/no 10036009 Set of fuses

Optional programs or/and kits of accessories:

11. Cat/no 10036010 Additional program and kit for testing glues (Modified ISO-WILHELMI method, 1°C/ min&silicone-oil bath, or other on request)
12. Cat/no 10036011 Additional program with ball-guiding kit for testing plastics and lipsticks (Modified ISO-WILHELMI method, 0 to 10 °C / min heating rate and relevant type of bath)
13. Cat/no 10036012 Additional program and kit for testing compound paraffins and paraffin melts according to NFT 66147
14. Cat/no 10036013 Additional program and kit for testing resins, binders for paints and varnishes according to testing ISO 4625 - ASTM E 28

Other Ring&Ball Methods upon request.

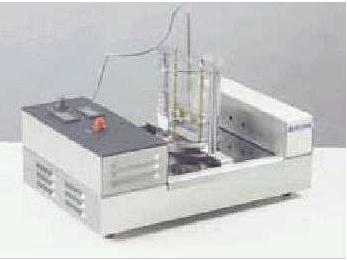

Automatic Ring & Ball Tester Model NBA 440
