SPECIFICATION

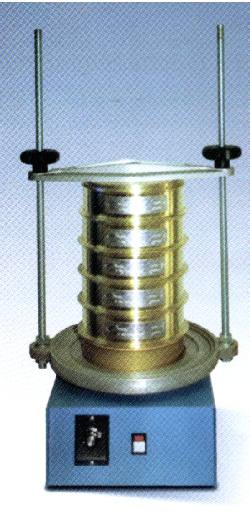

A compact shaker for bench use, suitable for sieves with a maximum diameter of 315mm.


The sieving action is provided by an off-set weight motor which imparts a random multi-directional motion to the sieve stack. This action provides an ideal movement for particle sizes up to 20mm.


A timer is fitted to provide automatic stop on completion of test.

SIEVE CAPACITIES

( for standard Full-Height Sieves)

10 Sieves of 200 mm / 8 inches size
6 Sieves of 300mm / 12inches size
Plus appropriate lid and Receiver

ELECTRICAL SUPPLY
220/240 Volt 50Hz
110 Volt 60Hz

WEIGHT
20kg

OPTIONAL ACCESSORY
SV001/1 - Quick release clamps can be supplied instead of the standard screw type.

SIEVE SHAKER

Model SV005

SPECIFICATION

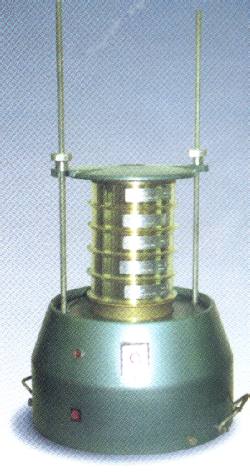

Our heavy duty floor mounted shaker, suitable for sieves with a maximum diameter of 315mm.

Sieving action is provided by a rotating cam which imparts both vertical and horizontal motion to the nest of sieves. This action creates a rotation motion of the material being sieved. A mechanical timer is fitted to provide auto shut-off on completion of test.

h3 >SIEVE CAPACITIES ( for standard Full-Height Sieves)

11 Sieves of 200 mm / 8 inches size
7 Sieves of 300mm / 12inches size
Plus appropriate lid and Receiver

ELECTRICAL SUPPLY
220/240 Volt 50Hz
110 Volt 60Hz

WEIGHT
45kg

OPTIONAL ACCESSORY
SV005/1 - Quick release clamps can be supplied instead of the standard screw type.

SIEVE SHAKER

Model SV007

This unit is similar to MODEL SV005 but has the capability to accept sieves with a maximum diameter of 450mm/18 inches.

OPTIONAL ACCESSORY

SV005/1 - Quick release clamps can be supplied instead of the standard screw type.
