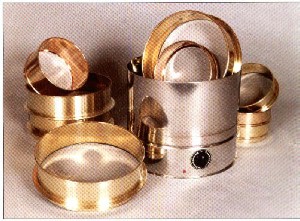

THE R300 ULTRASONIC CLEANING BATH

Accepts up to 300mm diameter test sieves

BS812 and BS1377 suggest a none contact method of cleaning test sieves. Also ideal for cleaning many other delicate instruments and has been found to enhance density results in the R.I.C.E. Theoretical Maximum Density of Bituminously Bound Aggregates test, utilising its De-Gassing properties.

SPECIFICATIONS

20 litres maximum

7.5 to 16 litres working capacities

365 dia x 303 high overall dimensions

356 dia x 203h x 2mm wall bath dimensions

Grade 304 stainless steel, body material

Ultrasonics generated by 6 N° PZT transducers

0 to 30 mins timer switch

40 kHz nominal operating frequency

80 dB nominal sound pressure level @ 1 metre

220 - 240 VAC, 50 - 60 Hz power supply

300 VA power consumption dependant on loading

OPTIONAL ACCESSORIES

Drop on lid; wire basket, armoured cable for mines & quarries regulated sites.

Manufactured in compliance with: IEC 1010 - 1:1990 & Amendment 1:1992 (EN 61010 - 1 - 1993)

International standard of safety requirements for electrical equipment used in measurement, control and laboratory use.

Model	LEO	QC	80T	80H	250	R300
Order code	QGU-17760	QGU-17770	QGU-17790	QGU-17800	QGU-17820	QGU-17850
Timer range	5 MIN Auto off	0--30MIN/ Constant	0--30MIN/ Constant	0--30MIN/ Constant	0--30MIN/ Constant	0--30MIN/ Constant
Voltage	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz
Internal size (mm)	168x89x55	240x135x100	300x151x150	300x240x150	505x300x150	356Dx203
Overall size (mm)	190x120x80	265x163x196	365x190x245	365x280x245	570x340x240	365Dx303
Weight	920g	2.75kg	3.75kg	5.20kg	8.40kg	8.0 kg
Working capacity	600ml	2 Ltrs	4.7Lrs	8.5Ltrs	20Ltrs	16Ltrs
Max. capacity	700ml	2.75Ltrs	5.7Ltrs	9.5Ltrs	21Ltrs	20Ltrs
Power	50 watts	60 watts	150 watts	200 watts	375 watts	300 watts
Frequency	46kHz	30-40kHz	30-40kHz	30-40kHz	30-40kHz	40kHz
