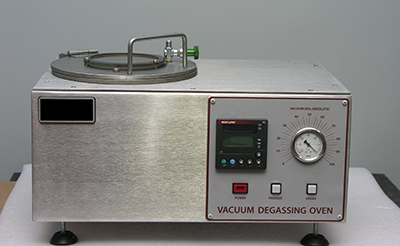

VACUUM DEGASSING OVEN
AASHTO R28 ASTM D6521
The VDO, Vacuum Degassing Oven uses an electrically powered vacuum system to rapidly evacuate the chamber to the required 15kPa (25.5Hg). The precision controller features a digital display to indicate time, temperature, and current process stage. Audible and visual alarms alert the user at end of each
process. Illuminated pre-heat, degas and end/stop buttons allow easy operation. The CS-VDO, vacuum degassing oven includes four 236ml (8oz) sample tins, and a specimen removal tool for easy loading and unloading of samples.
Key Features
- Meets ASTM, AASHTO standards
- Stainless steel construction
- Heat-resistant glass viewing window for observation during the vacuum degassing process
- Audible and visual alarms alert the user at end of each process
Information / Specs
Specifications
Operating pressure: 15 KPA to Atmosphere
Temperature range: 175º C ± 5º C
Temp. resolution: 0.1º C
Test temp. uniformity: ± 5º C
| Cabinet Dimensions mm (w x d x h) |
610 x 406 x 304 |
| Weight Kg |
84 (approx.) |
| Electrical Supply |
115 VAC, 1 Ph. 60 Hz.
Or 230 VAC, 1 Ph. 50 Hz. |
|
